Mini 10/100Base-TX to 100Base-SFP Media Converter
Mini 10/100Base-TX to 100Base-SFP Media Converter Advantage
► 10/100Base-TX UTP to 100Base-FX fiber media converter
► Support IEEE802.3 & 802.3U Fast Ethernet Standards
► SFP Port
► DIP switch to set different configuration
► LFP (Link Fault Pass-through) support
► Support jumbo frame
► Compact package size
Mini 10/100Base-TX to 100Base-SFP Media Converter Overview
The mini 10/100Base-TX to 100Base-FX SFP media converter is fully compliant with IEEE 802.3 & 802.3u
Fast Ethernet Standards. The converter can support auto MDI-MDIX function, flow control for full and half
duplex operation, etc.
A DIP switch is placed at the bottom of the case. Depend on different configurations; the user can set the
different operating mode (Force FX to 100M, pass through mode, etc).
Mini 10/100Base-TX to 100Base-SFP Media Converter Technical Indexes
|
Parameter
|
Specifications
|
|
Access mode
|
10/100Mbps
|
|
Standard
|
IEEE802.3, IEEE802.3u
|
|
100Base-FX
|
|
Wavelength
|
850nm/1310nm/1550nm
|
|
Transmission distance
|
Multi-mode:
62.5/125μm fiber: 220m;
50/125μm fiber: 550m
|
|
single mode:
20/40/60/80/100 km;
|
|
Cat-5 twisted pairs: 100m
|
|
Conversion means
|
Store and Forward mode or Cut-Through mode
|
|
Flow control
|
Full duplex: flow control;
|
|
Half duplex: back pressure
|
|
Input voltage
|
DC 5V~12V
|
|
Power consume
|
<3W
|
|
Operating temperature
|
0~50ºC
|
|
Operating humidity
|
5%~90%
|
|
Maintaining temperature
|
-40~70ºC
|
|
Maintaining humidity
|
5% ~ 90% non-condensing
|
|
Dimensions
|
58 (W) x 20 (H) x 90 (L) (mm)
|
Mini 10/100Base-TX to 100Base-SFP Media Converter Ordering Information
|
Item
|
Description
|
|
|
LNK-MN-100MC-SFP
|
Mini 10/100Base-TX to 100BASE SFP Media Converter, excl. SFP modules, standalone, external power adaptor
|
Product Tags:
|
|

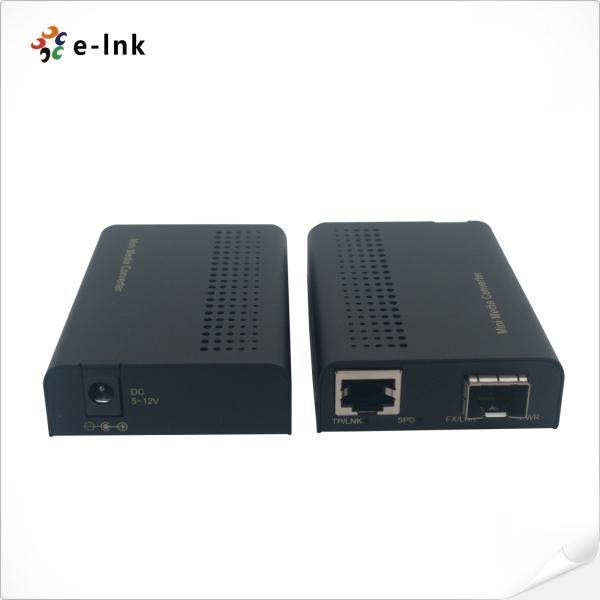

Mini 10/100Base-TX to 100Base-SFP Media Converter Images
|
