Industrial Wall Mount 802.3at PoE Power Splitter Output Voltage 36VDC

Name: Industrial Wall Mount 8023at PoE Power Splitter Output Voltage 36VDC
Brand: E-link
Price: 1 USD

China Industrial Wall Mount 802.3at PoE Power Splitter Output Voltage 36VDC wholesale

Brand Name : E-link

Model Number : LNK-INS301-36V

Certification : ROHS,FCC,CE

Place of Origin : China

MOQ : 1 pcs

Price : Negotiation

Payment Terms : T/T, Western Union, MoneyGram, Paypal

Supply Ability : 5000pcs/month

Delivery Time : 5-12 working days

Packaging Details : PoE Power Splitter Standard Export Package

Keywords : PoE Power Splitter

Output Voltage : 20W 36VDC

PoE Standard : 802.3af/at Power over Ethernet

Distance : Up to 100 meters

Casing : IP40 Aluminum Case

Mounting Options : DIN-Rail / Wall-mount

Contact Now

Industrial Wall Mount 802.3at PoE Power Splitter Output Voltage 36VDC

Industrial 10/100/1000Mbps 802.3at PoE+ Splitter Output Voltage 36VDC

PoE Power Splitter Advantages

► Support 10/100/1000Base-T

► Distance up to 100 meters

► Short-circuit protection for power output

► IP40 rugged metal housing and fanless

► Support DIN-Rail & Wall-mount installation

► Extensive LED indicators for PoE diagnostics

Technical Indexes

Ethernet
Standards:	IEEE 802.3 10Base-T Ethernet
	IEEE 802.3u 100Base-TX Fast Ethernet
	IEEE 802.3ab 1000Base-T Gigabit Ethernet
	IEEE 802.3af Power over Ethernet
	IEEE 802.3at Power over Ethernet Plus
Processing Type:	Forward
	Half-duplex, Full-duplex
Forward Filter Rate:	1,488,000pps (1000Mbps)
Cabling:	1000Base-T: Cat5 or above
Maximum Distance:	Cat5 UTP up to 100m
Interface:	“PoE (Power + Data)” Input Port: 1 x RJ-45 10/100/1000Base-T
	“Data” Out Port: 1 x RJ-45 10/100/1000Base-T
	DC Out Plug Connector: 1 removable 2-Pin terminal block
Regulatory Approvals
ISO9001
FCC part 15, Class A
EN55022:2006+A1: 2007 Class A
Surge Protection:
RJ45: 1KV
Power: 500W
ESD: 4KV/8KV

Overview
The LNK-INS301-36V acts as PD equipment and can be powered by standard PoE IEEE802.3af/at PSE (Power Source Equipment) switches or work when paired with LNK-INJ301 PoE Injectors.This device saves the high cost of running separate electrical service to edge devices.

Industrial Wall Mount 802.3at PoE Power Splitter Output Voltage 36VDC

Ordering Information

Model	Description
LNK-INS301-36V	Industrial IEEE802.3at Gigabit PoE Splitter Output Voltage 36VDC, maximum output of 20W at 36VDC, Support DIN-Rail mounting and Wall mounting installation, -40 to 80°C operating temperature

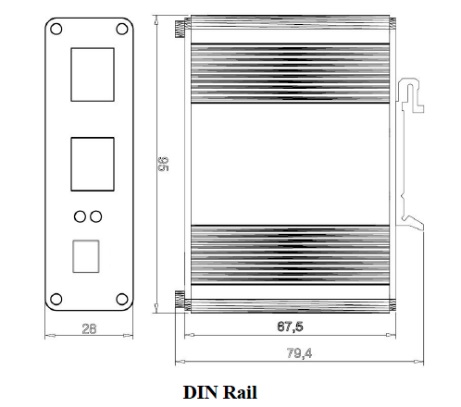

Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
