PoE Power Splitter Industrial 10 100 1000Mbps 802.3at 30W Power Over Ethernet 19VDC Output
PoE Power Splitter Advantages
► Splits power and data from PoE Input
► Short-circuit protection for power output
► IP40 rugged metal housing and fanless
► Support DIN-Rail & Wall-mount installation
► Extensive LED indicators for PoE diagnostics
►Wide operating temperature -40 ~ 80°C
Technical Indexes
| Ethernet |
| Standards: | IEEE 802.3 10Base-T Ethernet |
| IEEE 802.3u 100Base-TX Fast Ethernet |
| IEEE 802.3ab 1000Base-T Gigabit Ethernet |
| IEEE 802.3af Power over Ethernet |
| IEEE 802.3at Power over Ethernet Plus |
| Processing Type: | Forward |
| Half-duplex, Full-duplex |
| Forward Filter Rate: | 1,488,000pps (1000Mbps) |
| Cabling: | 1000Base-T: Cat5 or above |
| Maximum Distance: | Cat5 UTP up to 100m |
| Interface: | “PoE (Power + Data)” Input Port: 1 x RJ-45 10/100/1000Base-T |
| “Data” Out Port: 1 x RJ-45 10/100/1000Base-T |
| DC Out Plug Connector: 1 removable 2-Pin terminal block |
| Power over Ethernet |
| PoE Standard: | IEEE 802.3af/at Power over Ethernet |
| Number of devices that can be powered: | 1 (DC19V) (Vary on device’s power requirement; cannot be over 20 watts.) |
Overview

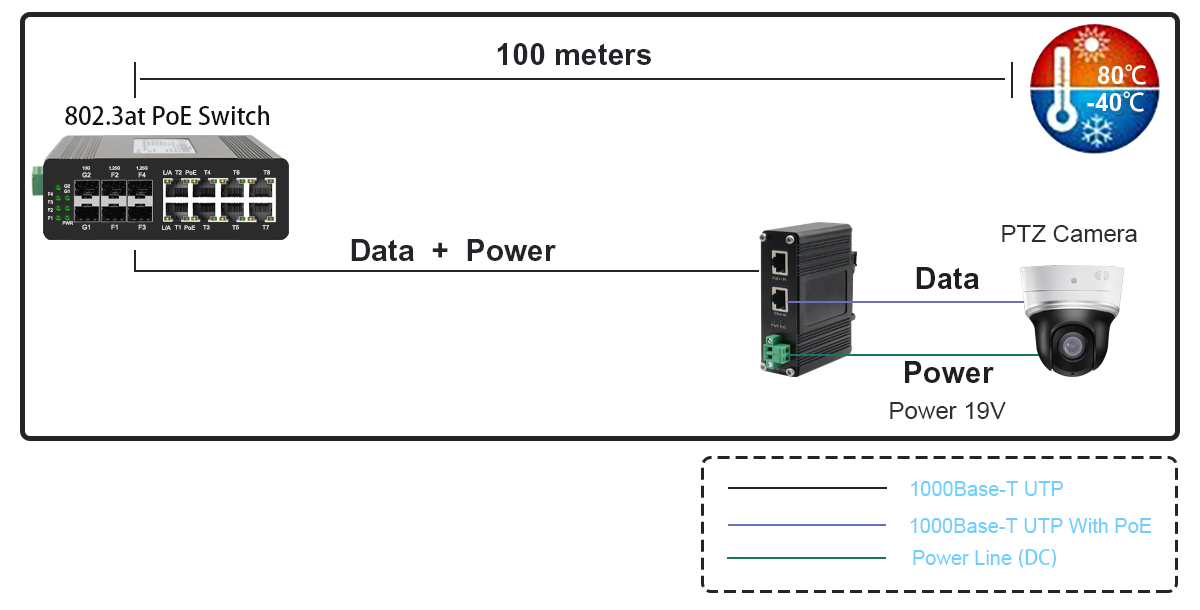

The data transmission, up to Gigabit speeds, with power output voltages of 19VDC, run simultaneously up to the Ethernet limit of 100 meters. Simple settings of the LNK-INS301-19V, make it a plug and play device, requiring no tools or software configuration, and provides ease of use, with flexible installation and high reliability.
Ordering Information
| Model | Description |
| LNK-INS301-19V | Industrial IEEE802.3at Gigabit PoE Splitter Output Voltage 19VDC, maximum output of 20W at 19VDC, Support DIN-Rail mounting and Wall mounting installation, -40 to 80°C operating temperature |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
Product Tags:
|
|

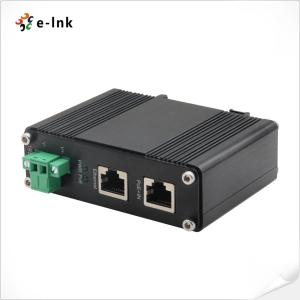

PoE Splitter for DIN-Rail or Wall-mount Installation Images
|
