Mini Industrial 4-Port 10/100/1000T + 1-Port 100/1000X SFP
Gigabit Ethernet Switch
Product Overview:
The LNK-IMC104G-SFP Series is a compact industrial-grade Gigabit Ethernet switch engineered for robust performance in demanding environments. Featuring four auto-negotiation 10/100/1000BASE-T copper ports and one versatile 100/1000BASE-X SFP fiber slot, it enables seamless media conversion and network integration. The SFP interface supports flexible deployment with various pluggable modules, including both single-mode and multi-mode fiber types, for customized long-distance connectivity.
Housed in a rugged metal enclosure, this hardened switch operates reliably across an extended temperature range of -40°C to 75°C, ensuring stable performance in harsh conditions including industrial automation, outdoor surveillance, and transportation systems. It supports wide-range 12~48VDC power input, making it suitable for solar-powered applications, renewable energy systems, and mobile deployments with fluctuating power sources.
This unmanaged switch offers plug-and-play operation while meeting CE, FCC, and industrial standards. It undergoes rigorous 100% burn-in testing to guarantee reliability in critical applications. The compact design allows for easy installation in space-constrained applications while maintaining industrial-grade durability, making it perfect for smart city infrastructure, power utility networks, and remote monitoring systems.
Features Description:
-
Auto-Detecting SFP Fiber Slot: Features 100/1000BASE-X SFP interface with automatic module detection, supporting both single-mode and multi-mode fiber transceivers for scalable network expansion
-
Quad Gigabit Copper Ports with Auto-Sensing: Four 10/100/1000BASE-T RJ45 ports with auto MDI/MDI-X detection, enabling plug-and-play deployment without manual cable configuration
-
Wide Voltage Input Compatibility: Accepts 12-48VDC power input through terminal blocks, ensuring stable operation in solar, vehicular, and unstable power environments
-
Advanced Flow Control Support: Implements 802.3x flow control mechanism to prevent data packet loss and optimize network traffic management
-
Energy Efficient Ethernet Compliance: Reduces power consumption by up to 80% during low-data periods while maintaining IEEE 802.3az EEE standards
-
Dual Mounting Flexibility: Supports both DIN-rail and wall-mount installation for versatile deployment in control cabinets and space-constrained industrial settings
-
Industrial-Grade IP40 Protection: Features dustproof, rugged high-strength metal casing with EMI shielding and enhanced durability for harsh environments
-
Extended Temperature Resilience: Operates reliably in extreme conditions from -40°C to 80°C (-40°F to 176°F), suitable for outdoor and unregulated environments
Application Scenarios
-
Industrial Automation and Control Systems: Provides reliable connectivity for PLCs, HMIs, motor drives, and industrial IoT devices in high-EMI manufacturing environments with real-time data transmission requirements
-
IP Surveillance and Security Networks: Supports high-resolution IP cameras, NVR systems, and access control devices with fiber backbone connectivity for extended distance monitoring and centralized management
-
Intelligent Transportation Systems (ITS): Enables traffic monitoring, vehicle detection, and roadside communication networks in wide-temperature environments (-40°C to 80°C) for toll collection and traffic management
-
Outdoor Wireless Deployments: Facilitates WLAN access points, 4G/5G small cells, and microwave links with reliable fiber uplink capabilities in harsh weather conditions
-
Power Utility and Energy Infrastructure: Suitable for substation automation, grid monitoring, and renewable energy systems requiring electrical isolation and surge protection
-
Building Automation Systems: Supports network integration for environmental controls, smart lighting, and building management applications with flexible SFP connectivity options
-
Marine and Offshore Applications: Provides corrosion-resistant network connectivity for vessel communication systems and offshore platform monitoring equipment
-
Mining and Heavy Industry: Operates reliably in vibration-intensive environments for mining equipment connectivity and remote monitoring systems with industrial-grade durability
Technical Parameters:
| Ethernet |
| Standards: | IEEE 802.3 Ethernet |
| | IEEE 802.3u Fast Ethernet |
| | IEEE 802.3ab Gigabit Ethernet |
| | IEEE 802.3x Full-Duplex Flow Control |
| | IEEE 802.3az Energy Efficient Ethernet (EEE) |
| Forward & Filtering Rate: | 14,880pps (10Mbps) |
| | 148,800pps (100Mbps) |
| | 1,488,000pps (1000Mbps) |
| Packet Buffer: | 1Mbits |
| Packet Length: | 10Kbytes |
| MAC Address Table: | 8K |
| Switch Fabric: | 10Gbps/non-blocking |
| Exchange Property | Backplane bandwidth: 20Gbps;
Packet forwarding rate: 14.88Mpps |
| Connector: | 4 10/100/1000BASET RJ45 auto-MDI/MDI-X ports |
| Interface |
| Connector: | 4 x RJ45 |
| Optical Port: | 1 x SFP 1000Base-X or 100Base-FX (auto detection) |
| Environmental |
| Operating Temperature: | -40°C to 80°C (-40°F to 176°F) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF | > 200,000 hrs |
| Electrical and Mechanical |
| Input Power: | 12~48VDC (Terminal Block) |
| Power Consumption: | <6W |
| Power Input Overload: | Automatic Resettable |
| Reverse Polarity: | Present |
| Dimensions (WxDxH): | 95 x 70x 29m |
| Weight: | 0.25Kg |
| Casing: | Aluminum Case |
| Mounting Options: | DIN-Rail / Wall-mount |
| LED Indicators: |
| PWR: | Power |
| L/A: | Link/Activity |
| SPD | Data Rate |
| Regulatory Approvals |
| ISO9001 |
| EN55022:2010+AC: 2011, Class A |
| EN 61000-3-2: 2006+A1: 2009+A2: 2009 |
| EN 61000-3-3: 2013 |
| EN55032:2017 |
| IEC 61000-4-2: 2008 (ESD) |
| IEC 61000-4-3: 2010 (RS) |
| IEC 61000-4-4: 2012 (EFT) |
| IEC 61000-4-5: 2014 (Surge) |
| IEC 61000-4-6: 2013 (CS) |
| IEC 61000-4-8: 2009 (PFMF) |

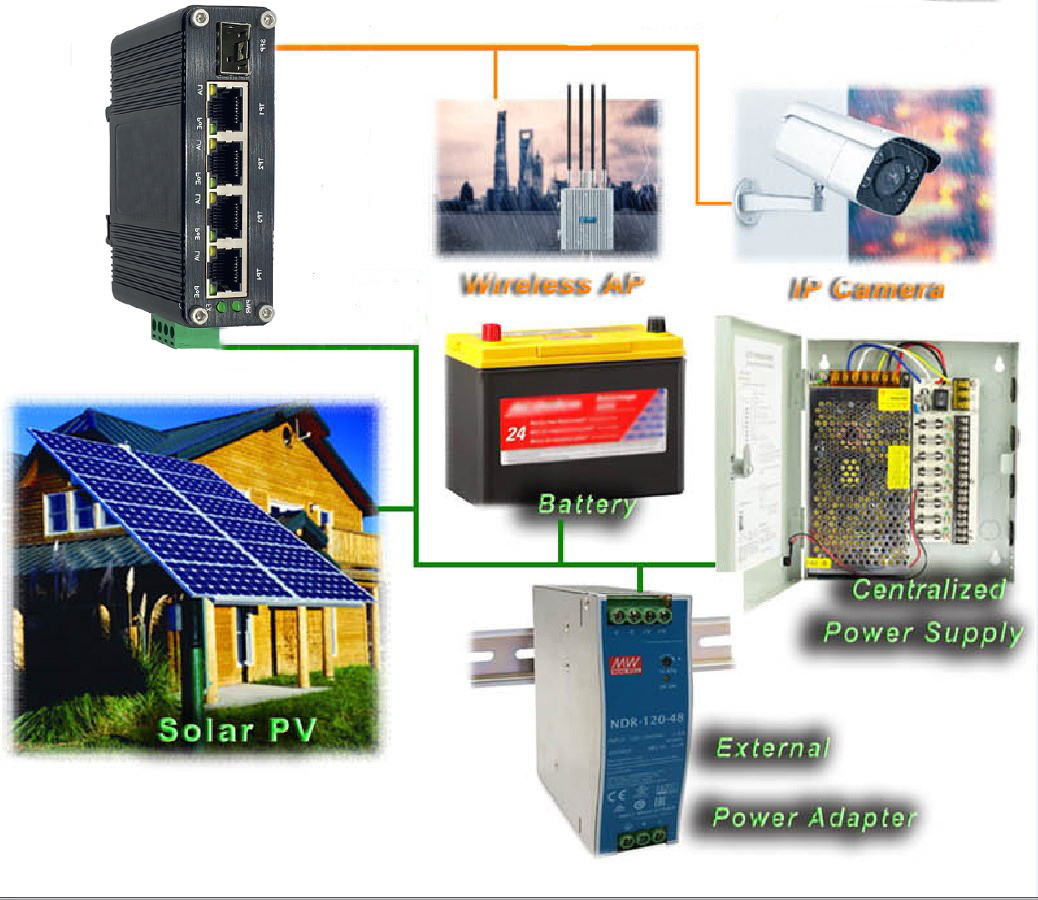

Applications Display Diagram:
